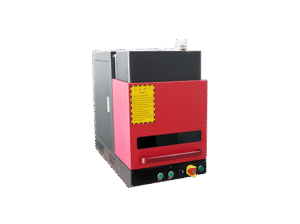

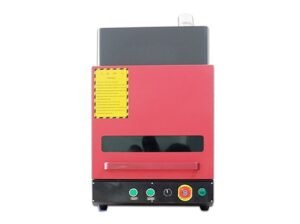

Desktop Enclosed Fiber Laser Marking Machine – Raycus Laser

The Synmark enclosed fiber laser marking machine features a closed structure design with a robust protective casing and a lid-opening protection function, which safeguards operators from laser radiation. It is mainly used for marking and engraving on metal and plastic materials.

Machine Features

  1. High Precision: Precision up to 0.0012 mm, delivering satisfactory marking results.
  2. Long Lifespan: Laser lifespan up to 200,000 hours, capable of continuous 24-hour operation.
  3. Low Energy Consumption: Total machine power < 450W, power consumption < 0.45 kWh per hour, economical and environmentally friendly
  4. Fast Speed: Maximum speed of 7,000 mm/s, 3-5 times faster than traditional products.
  5. Zero Consumables: No need to replace any parts within 5-10 years under good maintenance conditions.
  6. Zero Maintenance: The laser beam is directly transmitted from the laser through the fiber to the galvanometer, eliminating the need for optical path adjustment.
  7. Integrated Air Cooling System: No need for a water chiller. No need to replace or clean lenses.
  8. Ultra-Fine Laser Beam: At the micron level, 10 times finer than traditional products, especially suitable for precision marking.
  9. High-Performance Control System: USB port transmission compatible with laptops, fast and stable data transfer, user-friendly interface, and powerful software functions.
  10. Strong Compatibility: Compatible with file formats such as PLT, BMP, JPG, DXF, TTF, SHX, AI exported from CorelDraw, AI, PS, AutoCAD, Solidworks, etc.
  11. Wide Marking Content: Capable of marking numbers, text, images, patterns (including logos), barcodes (with code jumping), and QR codes (with code jumping).
  12. Deep Engraving: Engraving depth up to 1.0 mm on stainless steel, suitable for industries requiring high precision and deep marking effects.

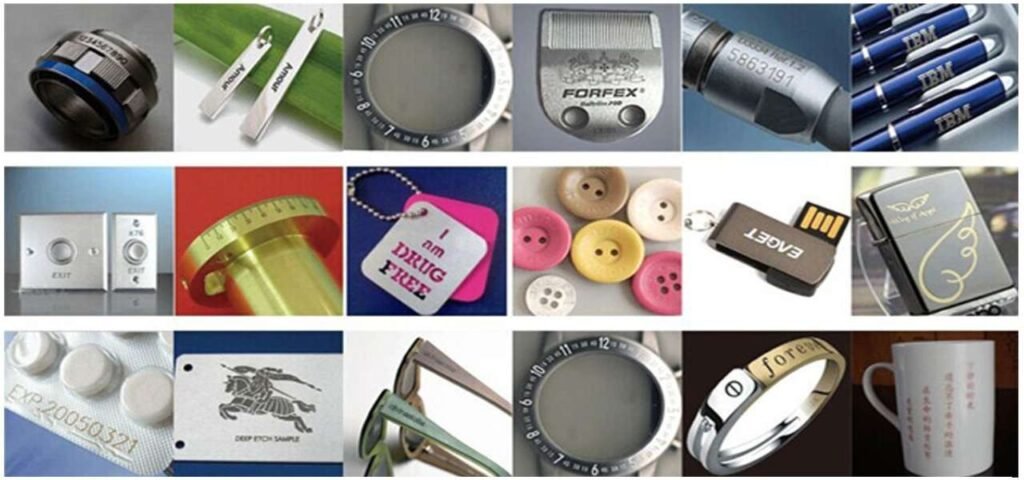

Materials for Application

The synmark fiber laser marking machine is widely used on metals and some non-metals, including gold, silver, copper, iron, aluminum, titanium, stainless steel, carbon steel, mild steel, chrome steel, aluminum alloy, alumina, non-transparent acrylic, nylon, ABS, PES, PVC, PET, other surface-coated materials, surface-plated materials, and surface-painted materials.

Industries Served

  1. Electronic Components: Resistors, capacitors, chips, printed circuit boards, computer keyboards, mice, USB drives, etc.
  2. Telecommunication Equipment: Mobile phones, walkie-talkies, fax machines, Bluetooth devices, chargers, protective cases, etc.
  3. Mechanical Parts: Bearings, gears, pulleys, racks, chucks, motors, lead screws, hooks, pumps, etc.
  4. Instruments and Meters: Vacuum leak detectors, pressure gauges, length measuring instruments, force gauges, microscopes, multipliers, etc.
  5. Hardware Tools: Pliers, scissors, wrenches, sockets, steel hammers, handsaws, tape measures, cutting tools, etc.
  6. Automotive Parts: Piston rings, spark plugs, transmissions, buttons, rearview mirrors, clutches, lamps, etc.
  7. Medical Devices: Surgical knives, forceps, tweezers, hearing aids, blood oxygen probes, ECG lead wires, etc.
  8. Other Industries: Zippers, keychains, pens, lighters, medals, gold and silver jewelry, signboards, etc.
